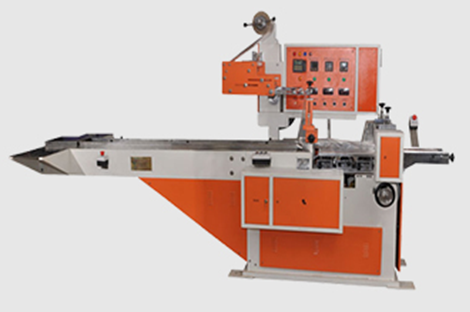

Horizontal Flow Wrap Machine can pack a variety of solid products of different shapes & sizes with all types of heat sealable films and laminates. These machines are extensively used to pack Appalams, Rusks, Biscuits, bun, chocolate bars, Ice Cream Bars, Cakes, groundnut chikkies, cotton & Bandage Roles, Scrub Pads, Noodles etc.
| Technical Specifications |
|---|
| Feeding Style: Manual / Auto |
| Packing Style: Pillow Type Centre Seal |
| Packing Size: Length: Width 30 mm to 120 mm, Length 30 mm to 150 mm, Height 05 mm to 60 mm |
| Packing film size : width 100 mm to 375 mm, Cut length 75 mm to 240 mm |
| Production Output : Approx 30 to 90 Packs / minutes |
| Packing Material: all type of laminated (BOPP, LD Polyester, Aluminum foil) |
| Motor: 1Hp 3Phase 440V, Power: 3kw, Heater: 50v, 2000watts |
| Machine Dimension : Length 3700 mm, Width 1200 mm, Height 1800 mm, Machine Weight: 800 kg Approx |
| Features |
|---|
| Cantilever construction that provides for easy cleaning and electrical components |
| Left to right operating direction |
| Rotary cross sealing jaws |
| Self-centering film reel holder with a operated brake system |
| Adjustable film folding box |
| For every cut length we should change timing gear wheel |
| Eye mark setting should be done for every cut length |
| AIf sensor misses the eye mark sensation correction should be done manually by using the forward button or else the eye mark setting should be done from the beginning. |
