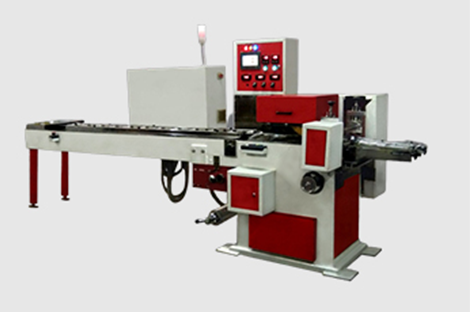

Inverted Flow Wrapper can pack loose, irregular, stick type product packing, such as vegetables, steamed dumpling, ice - bar, meat, hardware, food, bakery, confectionery, dairy, fresh produce, egg roll, sausage, squid, moon - cake, instant noodles, preserved fruit, jelly candy, toilet soap, pocket notebook, box pen, sticky tape, pharmaceutical, & so on. The machine‘s inverted film path gently transports the product directly onto the film from the former through the cutting head, greatly reducing jams and ensuring superior package appearance.
Technical Specifications |
---|
Bag Length: 70-360 mm; |
Film Width: up to 360 mm; |
Product Height: up to 65 mm; |
Pack Speed: 25-250 bags / min; |
Voltage: 440 V, 50 Hz, Total Power: 5 HP 3 Phase |
Dimension (mm): 3900 x 920 x 1300; |
Machine Weight: Approx 800 kg |
Wrapping Material: LDP / BOPP / Aluminum foil any heat sellable laminated material |
Parameter settings: HMI Colour Touch screen |
Features |
---|
PLC Controller System, the photoelectric detection and bi - directional tracking, which can eliminate the error of packing and reduce the waste of packing film and raw materials. |
Adopt bottom feeding film to packaging, the machine body can be cleaned by water. |
Intelligent Temperature System, Intuitive display, easy for setting, accurate temperature. |
High - speed, high efficiency, stable operation, low breakdown, easy maintenance etc. |
Date printer, automatic punching device, falling device, Stainless steel version can be available. |
