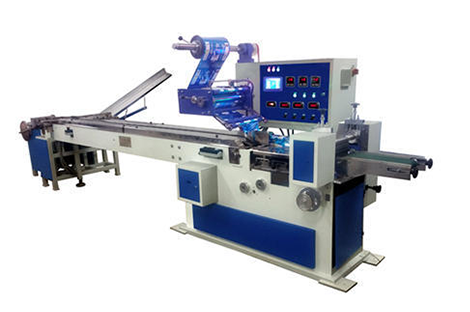

Rusk Packing Machine is utilized for medium - to high - production automatic non - shrink - wrapping applications the machine incorporates electronic motion control and an ergonomic design that makes cleaning & sanitizing easier. This model features the usual characteristics such as strength, ease of operation, and reliability. It is also possible to integrate many different automatic & semi - automatic feeders.
| Specifications |
|---|
| Conveyor length 3 meters, with auto feeder |
| Packing range 2 and 3 rows (150 to 400 gm) |
| Speed 20 to 60 packets per minute, (Depending the product length) |
| Packing Material all types of laminated wrapper (B.O.P.P, LD POLIESTER, ALUMINIUM FOIL etc.,) Warpper thickness minimum 25 microns. |
| Packing Film Size: Width - 200 to 550, Cut length - 175 to 300 |
| Servo PLC Control System |
| Power: 5 kw, 440 v with 50 volts, 2000 watts Heaters |
| Dimension: length:5500 mm, Width:1200 mm, height:1800 mm |
| Weight approx 1000 to 1500 kg |
| Features |
|---|
| Cantilever construction that provides for easy cleaning and maintenance, with easy access to mechanical and electrical components. |
| Left to right operating direction. |
| Rotary cross sealing jaws with an electronic overload safety switch. |
| Self - centerling film reel holder with a operated brake system. |
| In feed conveyor 3000mm long with auto feeder |
| Adjustable film folding box |
| The LCD Display and numeric keyboard, provides ease in setting machine parameters in displays operational and error message. |
| The control allows data storage for up to 15 different machine set ups |
